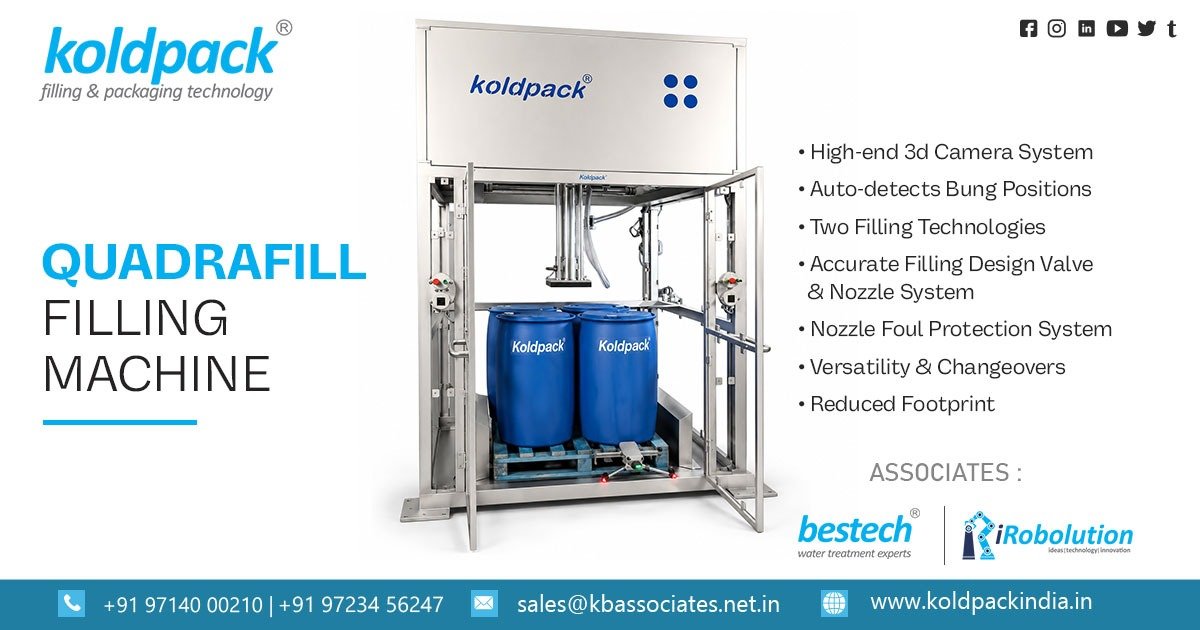

QuadraFill Automatic Container Filling Machine in Oman

Koldpack’s QuadraFill Container Filling Machine is a fully automatic solution for accurate, safe, and efficient liquid filling operations in Oman.
It is engineered to handle containers, buckets, drums, barrels, and IBCs positioned individually or on pallets.
Our machine combines multi-axis movement, industrial camera technology, automatic bung-hole detection, and centralized SCADA control.
This allows the filling lance to align precisely with each container opening without manual intervention.

Intelligent Vision-Based Filling Technology

A high-megapixel industrial automation camera scans multiple container openings in a single cycle. The system identifies the exact position of each bung hole and automatically guides the filling lance into alignment.

This intelligent process delivers:

Accurate nozzle positioning
Faster filling cycles
Reduced operator involvement
Minimal product spillage
Consistent filling accuracy
Higher production efficiency

Fully Automated Filling Process

QuadraFill can be configured as a flexible automatic workstation incorporating:

Automatic pallet infeed and outfeed
Bung-hole detection
Automatic decapping
Pre-filling nitrogen purging
Weight-based liquid filling
Post-filling nitrogen purging
Automatic capping
Sealing and closure
Cap lidding and crimping
Automatic container transfer

Centralized SCADA Operation

The entire filling process is managed through centralized SCADA software and a large 15-inch touchscreen display.
Operators can monitor production, select filling recipes, adjust operating parameters, and control the complete filling line from a single interface.
Unlimited filling recipes can be generated and stored for different products, container sizes, and production requirements.

QuadraFill Technical Specifications

Number of filling heads: 2 to 6
Production output: 200 to 600 containers per hour
Filling principle: Electronic load-cell-based weight filling
Nozzle options: Top filling or bottom filling
Contact parts: SS 316
Machine body: SS 304 with matt finish
Electrical supply: 440V AC, three-phase
Compressed-air pressure: 4 to 6 kg/cm²
Standard filling range: 1 to 5 litres with suitable change parts
Applications: Foamy and non-foamy liquids in bottles and containers

Output and filling performance may vary according to product characteristics, container size, filling volume, and machine configuration.

Advanced Machine Features

Servo-controlled conveyor roller system
Intermediate container positioning stations
Automatic roller or pneumatic plate closure
PLC-based controls with a large HMI touchscreen
Automatic tare and calibrated filling cycles
Coarse and fine filling modes for foamy liquids
Integrated filling tank with product agitator
Outside-opening, double-seat filling nozzle
High flow rate with controlled filling accuracy
Acrylic safety doors with interlocking systems
Quick-change components for different containers
Automatic lid placement, crimping, and closing
Compatibility with inkjet printers and palletizers

Hygienic and Easy-to-Clean Construction

Product-contact components are designed for convenient disassembly and cleaning. The main valve, buffer tank, nozzles, hoses, and pump use tri-clamp connections for faster removal and maintenance.

Specialized high-temperature, food-grade silicone seals support hygienic filling applications and simplify product changeovers.

Suitable Filling Applications

QuadraFill can be configured for a wide range of liquid products, including:

Foamy and non-foamy liquids
Industrial chemicals
Hazardous and toxic liquids
Flammable products with suitable safety configuration
High-temperature liquids
Food-grade liquid products
Products requiring nitrogen purging
Liquids packed in drums, barrels, IBCs, pails, or containers

Why Choose Koldpack QuadraFill in Oman?

Automatic vision-guided bung-hole alignment
Fast and accurate weight-based filling
Reduced dependence on manual operators
Flexible filling-head configurations
Support for multiple container formats
Centralized production control
Improved operator and process safety
Easy cleaning and maintenance
Expandable integration with other packaging equipment
Reliable productivity for demanding industrial operations

Frequently Asked Questions

Q1. What containers can QuadraFill handle?
A1. It can be configured for buckets, containers, drums, barrels, pails, and palletized IBCs.

Q2. How does the machine detect bung holes?
A2. An industrial camera scans the containers and automatically guides the filling lance to each opening.

Q3. Can QuadraFill process foamy liquids?
A3. Yes. Coarse and fine filling modes help control foam while maintaining filling accuracy.

Q4. Is nitrogen purging available?
A4. Yes. Pre-filling and post-filling nitrogen purging can be integrated into the automatic workstation.

Q5. Can the machine handle hazardous products?
A5. It can be specially configured for flammable, hazardous, toxic, and high-temperature liquids according to application requirements.

We Export QuadraFill Automatic Container Filling Machine in Oman including locations Muscat, Muscat, Bawshar, Salalah, Muttrah, Sohar, As Suwayq, Al Amirat, Ar Rustaq, Al Mudaybi, Al Buraimi, Nizwa, Samail, Qurayyat, Shinas, Izki, Ibra, Nakhal, Al Qabil, Dank, Bahla, Taqah and many more.

Upgrade your Oman filling line with Koldpack QuadraFill for safer automation, precise output, and dependable productivity today.
